Hardware / Sentinel
64 to 128 cameras per node
Maiyn Sentinel
A campus, a mall or a hospital on one rack.

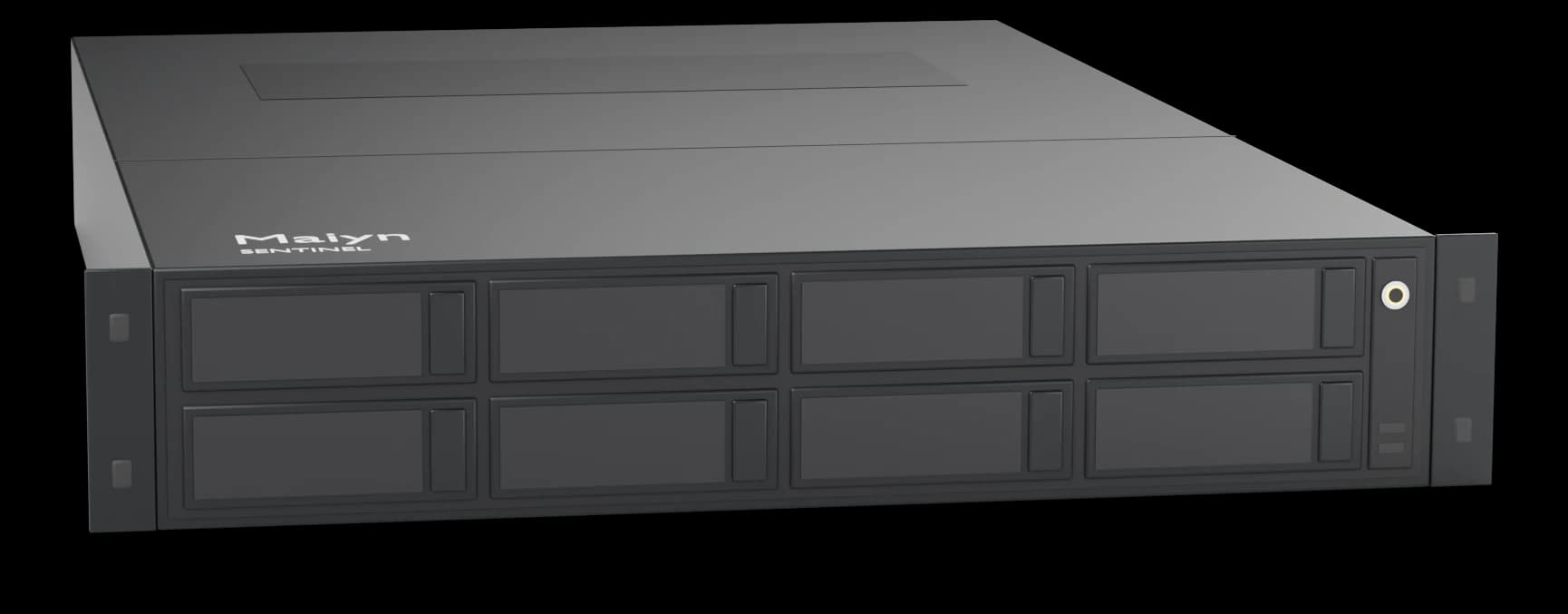

A 2U rack server for large estates. One node analyzes up to 128 cameras; nodes pair for failover and cluster across buildings under a single dashboard.
- Cameras per node
- 128
- GPUs
- 2× 24 GB
- Clip storage
- 160TB raw
- Power supplies
- 1+1redundant
Overview
Sentinel is for the control room: sites with hundreds of cameras, a security team on shift and an IT department that expects redundant power, out-of-band management and a support contract.
Each node carries up to two GPUs and eight hot-swap drives, so alert clips can be kept for as long as policy requires. Add nodes as the estate grows; the dashboard treats the cluster as one system.
Sized to your estate
Maiyn engineers size each node to your stream count, retention policy and network, and commission it on site.
Fits the estate you already run
Sentinel reads streams from your existing VMS or straight from cameras, signs users in through your identity provider and writes its audit trail to your SIEM.
Every port, and what it is for.
- 1Power supplies × 2Either one carries the full load; swap without shutdown
- 2ConsoleVGA and USB for crash-cart access
- 3BMCOut-of-band management on its own network
- 4Gigabit × 2Management and uplink
- 510 GbE SFP+ × 2Camera VLANs and storage
- 6GPU baysTwo double-width accelerators, 64 streams each
Technical specifications.
Capacity
| Camera streams | 64 per GPU; up to 128 per node |
|---|---|
| Scaling | Cluster nodes across buildings under one dashboard |
| Enrolled identities | 50,000 and above (opt-in feature) |
| Availability | Active–standby node pairs with automatic failover |
Compute
| Processor | 16-core / 32-thread x86-64 server CPU |
|---|---|
| GPU | Up to 2 × NVIDIA L4, 24 GB each |
| Memory | 64 GB ECC DDR5, expandable to 256 GB |
Storage
| System and index | 2 × 960 GB NVMe, mirrored |
|---|---|
| Clips | 8 × 3.5″ hot-swap bays, up to 160 TB raw |
| Protection | RAID 6 by default; encrypted at rest |
Connectivity
| Network | 2 × 10 GbE SFP+, 2 × Gigabit |
|---|---|
| Management | Dedicated BMC port with remote console |
| Integrations | VMS and NVR streams, SSO (SAML / OIDC), syslog, webhooks |
Power and environment
| Supplies | 2 × 800 W Platinum, hot-swap, redundant |
|---|---|
| Consumption | 350 W typical with two GPUs |
| Operating range | 10 to 35 °C |
Physical
| Form | 2U, 19-inch rack, sliding rails included |
|---|---|
| Dimensions | 438 × 660 × 88 mm |
| Weight | 19 kg without drives |
