Hardware / Edge Pro
Up to 16 cameras

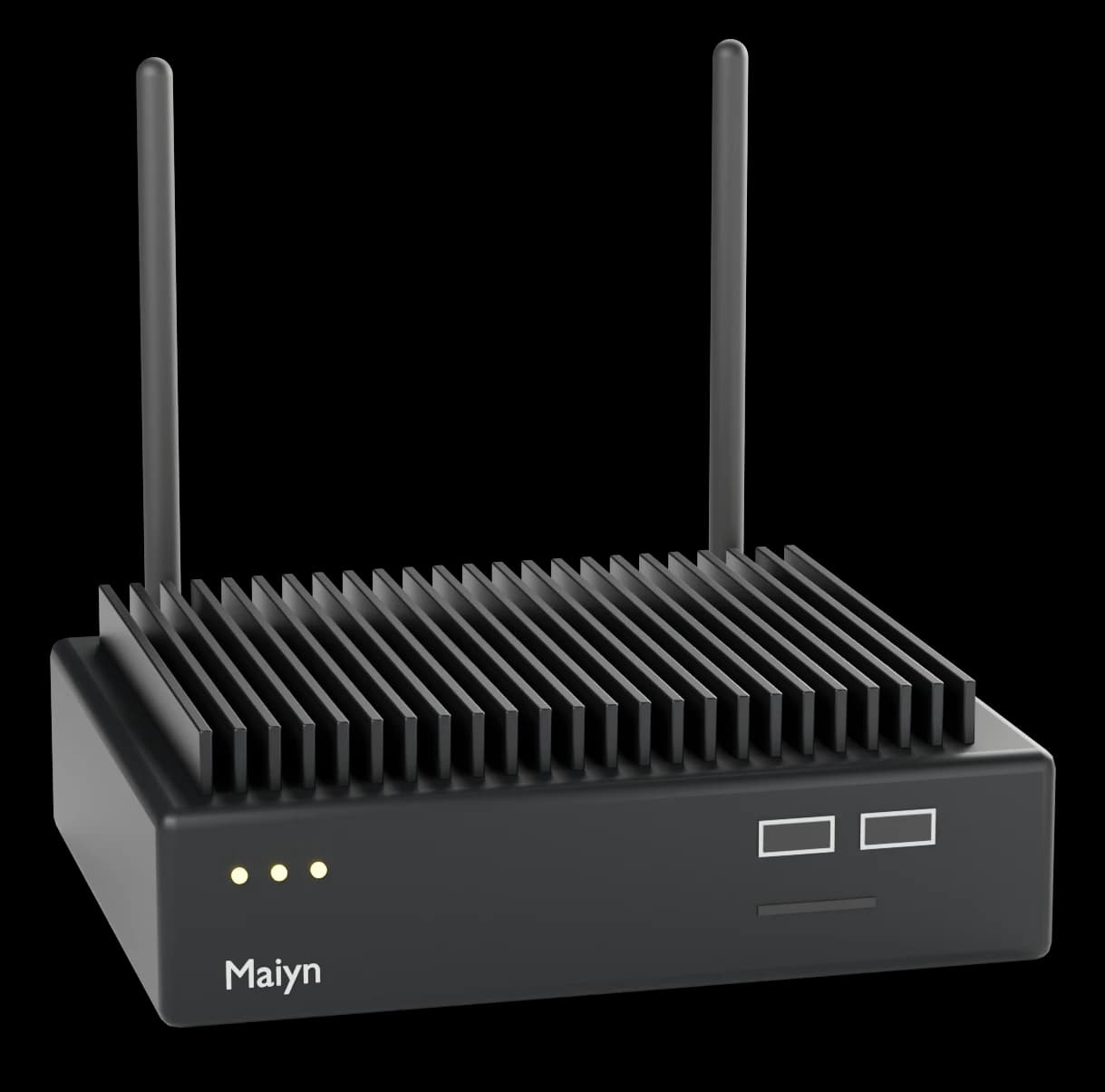

Maiyn Edge Pro
The whole platform for a full-size store.
GPU-class compute for supermarkets, restaurants and offices with up to sixteen cameras. Runs every Maiyn feature, including search and weapon alerts.
- Cameras
- 16
- AI performance
- 67TOPS
- Power, typical
- 18W
- Storage
- 512GB NVMe
Overview
Edge Pro is the workhorse of the range. It has the headroom to run detection, visitor re-identification and the search index on sixteen streams at once, without sending video anywhere.
Two network ports keep the camera network separate from your office network. An optional LTE modem gives alerts a second way out when the line is down.
Search that runs on site
Type “red jacket, backpack” and the index answers from the unit. Thumbnails are searched locally; no footage is uploaded to make search work.
Two networks, kept apart
Cameras sit behind LAN 2. They are reachable from the unit and nowhere else, which keeps the camera network sealed off from the outside world.
Every port, and what it is for.
- 112–24 V DC inLocking two-pin terminal
- 2LAN 1, uplinkTo your router or office network
- 3LAN 2, camerasIsolated: cameras cannot reach the internet through it
- 4USB 3.2 × 2Service and external backup
- 5HDMILocal live wall on any screen
- 6Antenna × 2Wi-Fi, or LTE when the modem is fitted
Technical specifications.
Capacity
| Camera streams | Up to 16, analyzed at 1080p |
|---|---|
| Weapon detection | On up to 8 of those streams |
| Enrolled identities | Up to 1,000 (opt-in feature) |
| On-device history | 60 days of events, thumbnails and alert clips |
Compute
| Module | NVIDIA Jetson Orin Nano 8 GB |
|---|---|
| Processor | 6-core Arm Cortex-A78AE |
| GPU | 1024-core NVIDIA Ampere, 32 tensor cores |
| Memory | 8 GB LPDDR5 |
| Storage | 512 GB NVMe SSD |
Connectivity
| Ethernet | 2 × Gigabit: uplink and isolated camera network |
|---|---|
| Wireless | Wi-Fi 6; optional 4G LTE modem |
| Camera protocols | RTSP, ONVIF Profile S/T, NVR and DVR sub-streams |
Power and environment
| Input | 12–24 V DC, locking terminal |
|---|---|
| Consumption | 18 W typical, 30 W peak |
| Cooling | Finned body; quiet fan engages above 40 °C |
| Operating range | −10 to 50 °C |
Physical
| Dimensions | 165 × 130 × 54 mm |
|---|---|
| Weight | 1.1 kg |
| Mounting | Shelf, wall or DIN rail |
