Up to 32 cameras

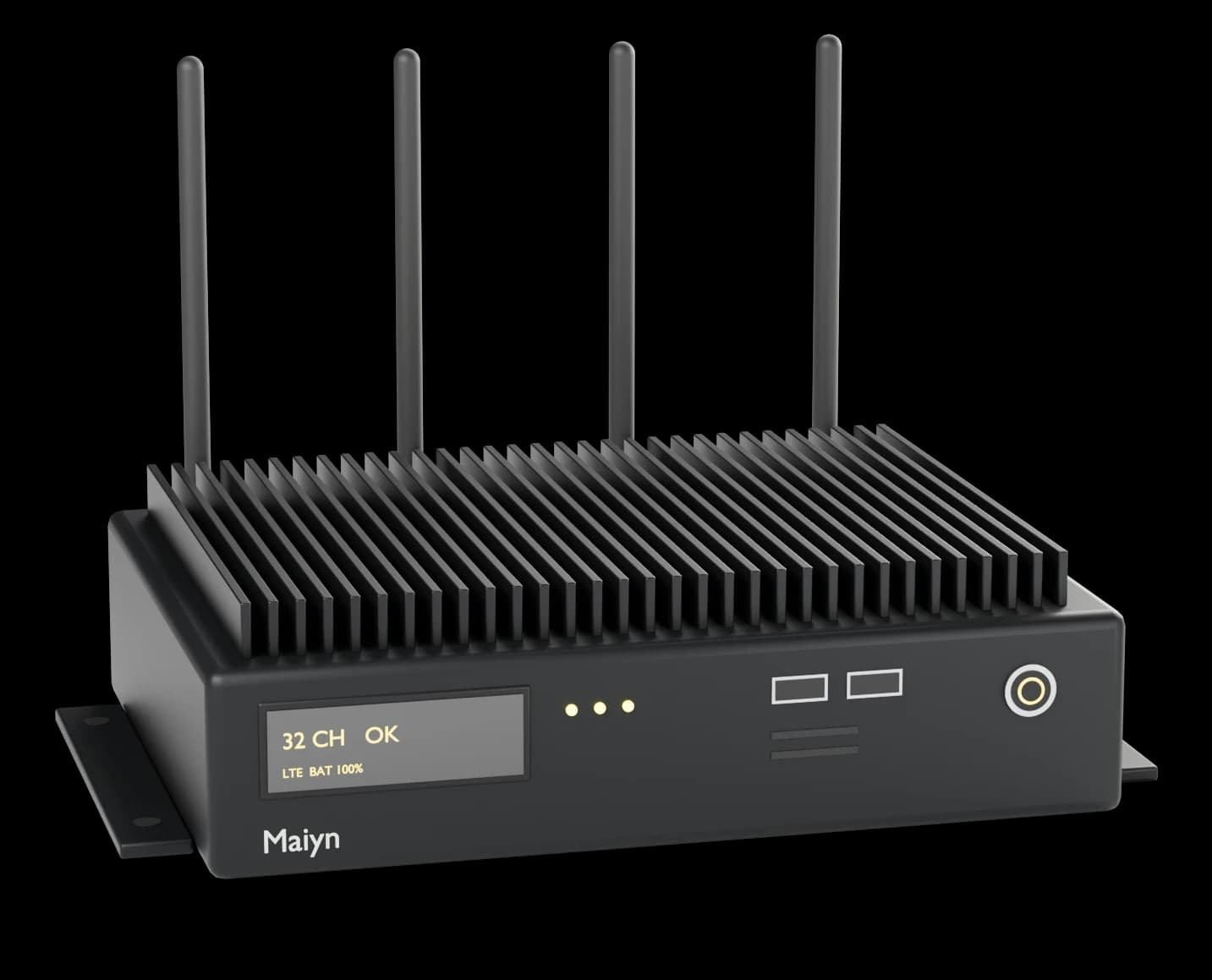

Maiyn Edge Max

Built for sites where power and internet can’t be trusted.

Thirty-two cameras, built-in LTE with two SIMs, a battery input that takes over when mains drops, and alarm contacts for sirens and doors.

Book a demo Specifications

ME-X1230 × 170 × 66 mm Maiyn edge max

Cameras: 32
AI performance: 157TOPS
DC input: 9–36V
Cellular: LTEdual SIM

Overview

Edge Max is built for the sites other systems struggle with: a warehouse on a generator, a fuel station at the end of a rural line, a distribution yard with one bar of signal.

It accepts anything from 9 to 36 volts, switches to a 12 V battery without rebooting, and carries on alerting over LTE when the fixed line is out. Dry-contact inputs and relay outputs wire straight into door sensors, sirens and existing alarm panels.

Rides through the outage

Wire a 12 V battery to the second terminal. The unit charges it, switches to it without restarting, and tells you it has done so.

Speaks to what is already on the wall

A weapon or intrusion alert can close a relay, so the siren you already own sounds without a cloud round-trip.

Every port, and what it is for.

Rear panel, drawn to scale. Dimensions in millimeters.

1
9–36 V DC in
Three-pin terminal with earth
2
12 V battery
Takes over within 10 ms when mains drops
3
2.5 GbE × 2
Uplink and isolated camera network
4
USB 3.2 × 4
Service and external backup
5
HDMI
Local live wall
6
Alarm I/O
4 inputs for door contacts, 2 relays for sirens or strobes
7
Antenna × 4
LTE main and diversity, Wi-Fi × 2

Technical specifications.

Capacity

Camera streams	Up to 32, analyzed at 1080p
Weapon detection	On all streams
Enrolled identities	Up to 5,000 (opt-in feature)
On-device history	90 days of events; clip retention set by drive size

Compute

Module	NVIDIA Jetson Orin NX 16 GB
Processor	8-core Arm Cortex-A78AE
GPU	1024-core NVIDIA Ampere, 32 tensor cores
Memory	16 GB LPDDR5
Storage	1 TB NVMe SSD, plus one 2.5″ SATA bay up to 8 TB

Connectivity

Ethernet	2 × 2.5 Gigabit: uplink and isolated camera network
Cellular	4G LTE Cat 6, dual SIM with automatic failover
Wireless	Wi-Fi 6
Alarm I/O	4 dry-contact inputs, 2 relay outputs, RS-485

Power and environment

Input	9–36 V DC, reverse-polarity protected
Backup	12 V battery input with seamless switchover and charge control
Consumption	35 W typical, 60 W peak
Operating range	−20 to 60 °C

Security

Hardware	TPM 2.0, secure boot, tamper switch
Data at rest	Encrypted volumes, keys held in the TPM

Physical

Dimensions	230 × 170 × 66 mm, excluding mounting ears
Weight	2.1 kg
Mounting	Wall or panel through the ears; DIN-rail kit
