Maiyn Edge Mini

One cable, one shelf, one shop.

A palm-sized unit for a single shop, café or clinic. It takes power and network over one Ethernet cable and runs silently with no fan.

Book a demo Specifications

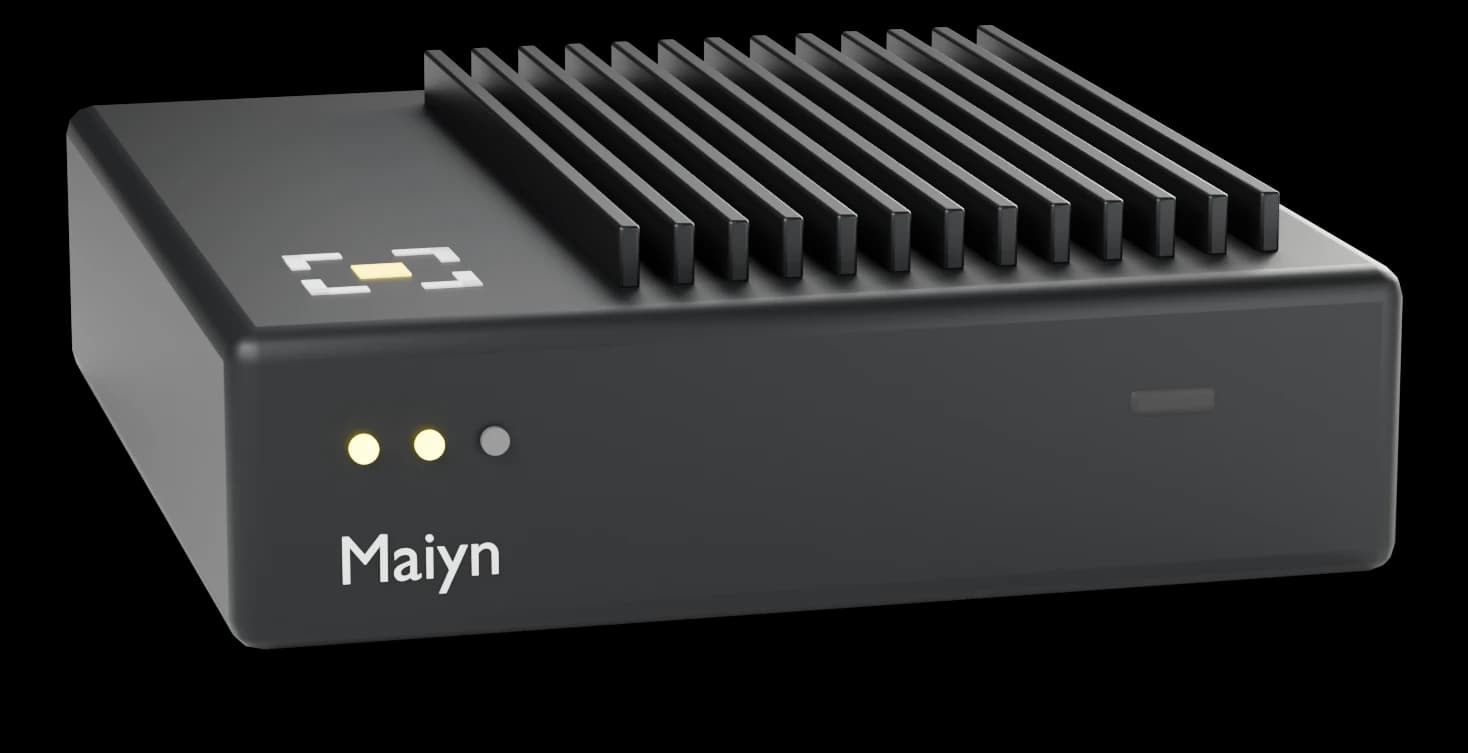

ME-M1112 × 112 × 36 mm Maiyn edge mini

Cameras: 8
AI accelerator: 13TOPS
Power, typical: 9W
Noise: 0dB · fanless

Overview

Most small sites have four to eight cameras and a recorder in a cupboard. Edge Mini sits next to that recorder, takes its power from the same switch, and starts reading the streams the recorder already produces.

People counting, zones, alerts and shelf checks run on the unit itself. Nothing but counts, alerts and small thumbnails leaves the building, which keeps data use to a few gigabytes a month.

Installs in the time it takes to find the recorder

Plug it into the camera network, open the setup page, and it lists every camera it can find. Pick the ones you want and draw your zones — or let it suggest them.

Keeps working when the internet doesn’t

Counting, alerts to local sirens and the on-site dashboard carry on offline. Events queue on the SSD and sync when the line returns.

Every port, and what it is for.

Rear panel, drawn to scale. Dimensions in millimeters.

1
USB-C power
Only needed when the switch has no PoE
2
Gigabit Ethernet, PoE+
Power and network on one cable
3
USB 3.0 × 2
Service and recovery
4
HDMI
First-time setup without a network
5
Reset
Hold ten seconds to restore factory state

Technical specifications.

Capacity

Camera streams	Up to 8, analyzed at 1080p
Enrolled identities	Up to 100 (opt-in feature)
On-device history	30 days of events, thumbnails and alert clips

Compute

Processor	Quad-core Arm Cortex-A76, 2.4 GHz
AI accelerator	13 TOPS neural processor
Memory	8 GB LPDDR4X
Storage	256 GB NVMe SSD

Connectivity

Ethernet	1 × Gigabit, PoE+ powered
Wireless	Wi-Fi 5, Bluetooth 5.0 (setup only)
Camera protocols	RTSP, ONVIF Profile S/T, NVR and DVR sub-streams

Power and environment

Input	PoE+ (802.3at) or USB-C 5 V / 5 A
Consumption	9 W typical, 15 W peak
Cooling	Fanless aluminium body
Operating range	0 to 45 °C, 10–90% humidity non-condensing

Physical

Dimensions	112 × 112 × 36 mm
Weight	420 g
Mounting	Shelf, wall, DIN rail or VESA 75

The rest of the range

64 to 128 cameras per node

Sentinel

Specifications

See Maiyn Edge Mini at work.

Book a demo and a Maiyn specialist will walk you through the platform and how it fits your sites.

Book a demo
